How to resolve Sprinto check for monitoring Azure Application Gateway Healthy Host

About

Sprinto Check: Azure Application Gateway healthy host count should be monitored

Azure Application Gateway is a scalable and highly available web traffic load balancer enabling you to manage web application traffic. Monitoring the healthy hosts in your Azure Application Gateway is crucial for ensuring high availability, detecting potential issues, and optimizing application performance.

Purpose

The purpose of the Sprinto check for Azure Application Gateway healthy hosts is to actively monitor and alert on the count of healthy hosts in your application gateway. This monitoring helps you:

• Ensure High Availability: Monitor the number of healthy hosts to ensure your application remains available and responsive.

• Proactive Issue Detection: Receive alerts if the count of healthy hosts deviates from expected values, allowing you to address potential issues proactively.

• Optimize Application Performance: Understand the health of individual hosts to optimize the overall performance of your web applications.

How to Resolve

To address this check, follow these steps to create a monitoring alert for Azure Application Gateway healthy hosts:

Before you Begin

• Ensure you have "Admin" access to the Azure account to create monitoring alerts.

• Log in to Sprinto as an administrator.

Creating Monitoring Alert

1. Log in to the Azure portal using your credentials.

2. Navigate to the Azure Application Gateway resource you want to monitor.

3. In the left-hand menu, under Settings, select Monitoring > Metrics.

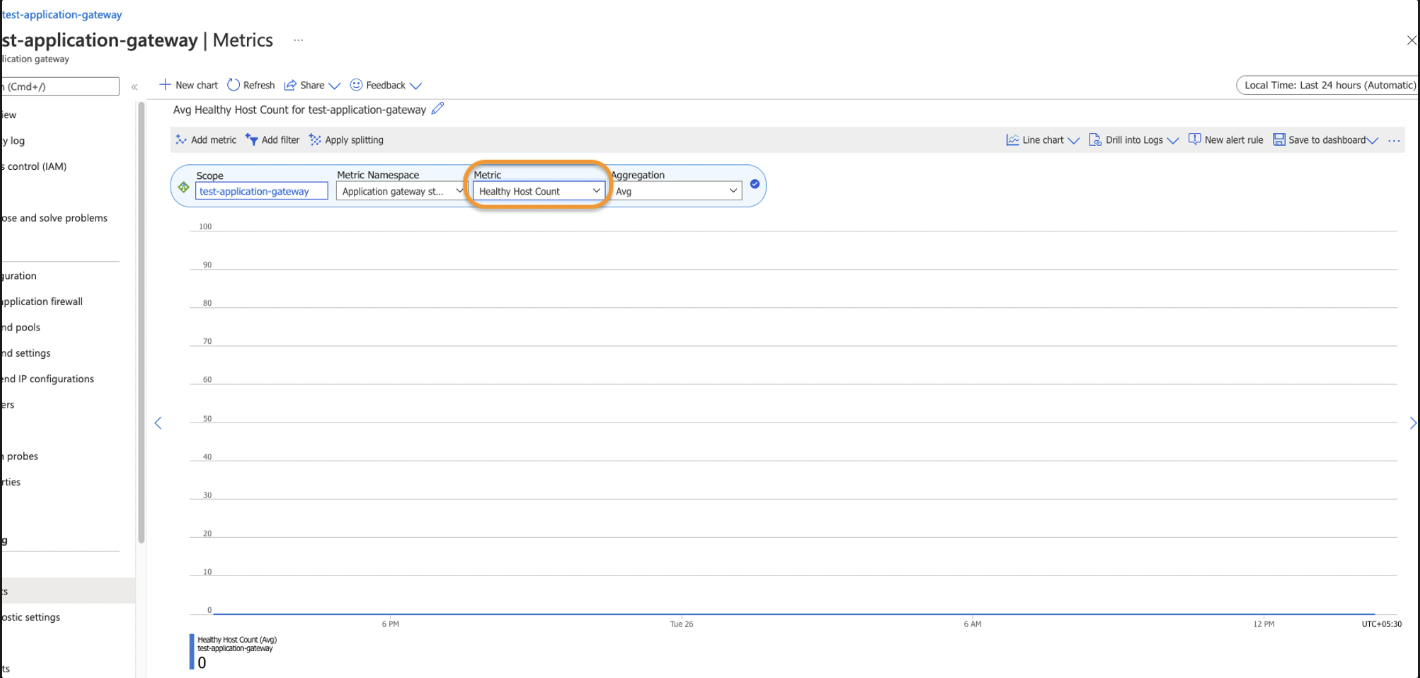

4. Leave the metric namespace as is and select the Healthy Host Count as the metric.


5. From the top side, click New Alert Rule.

6. On the Configuration Signal Logic drawer, select an Aggregation type and set a custom environment-specific threshold value. Note: The Aggregation type can be selected based on your environment. If you have no preference, you can choose Average as the Aggregation type.

7. From the Create Alert Rule window, on the Details tab, set an appropriate alert rule name.

8. Finally, click Review + Create to create the alert.

Once the alert is created, Sprinto retrieves the change and sets the assigned check status to "Passing."

If you need any assistance with the Sprinto check, please contact Sprinto Support.
